PDA Terminal Device

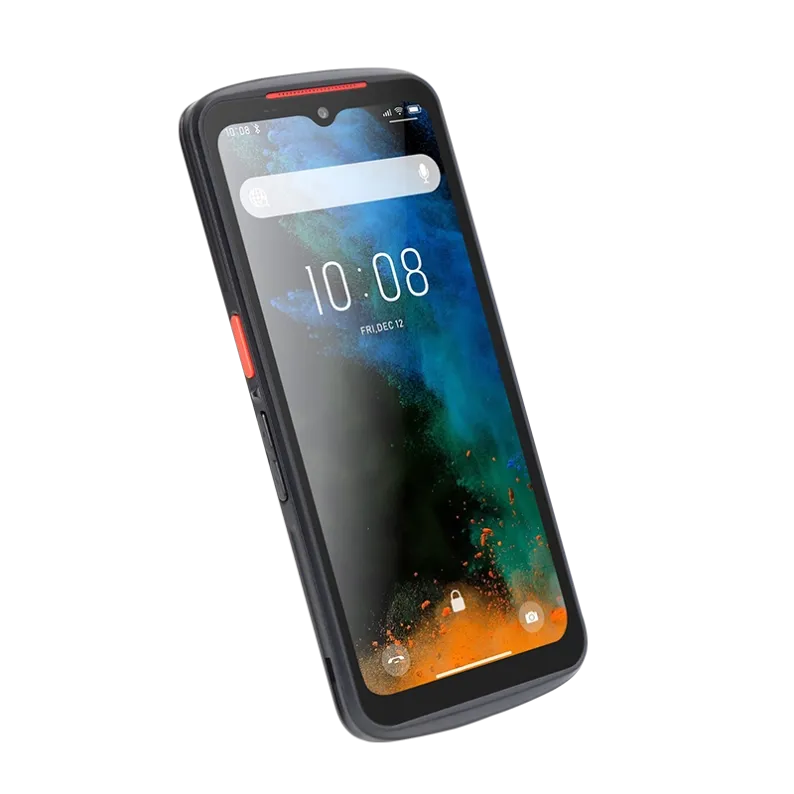

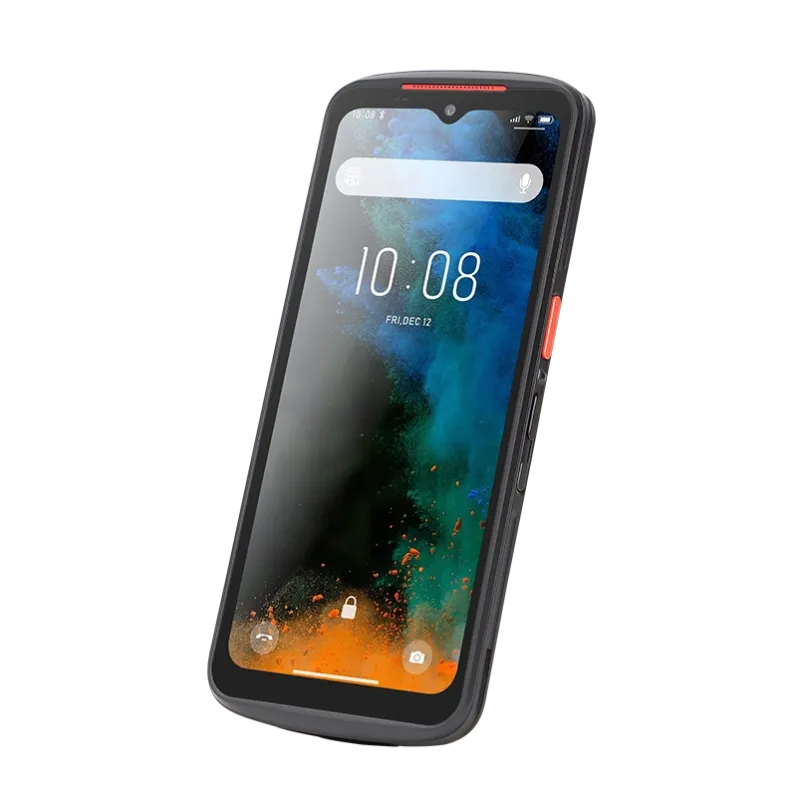

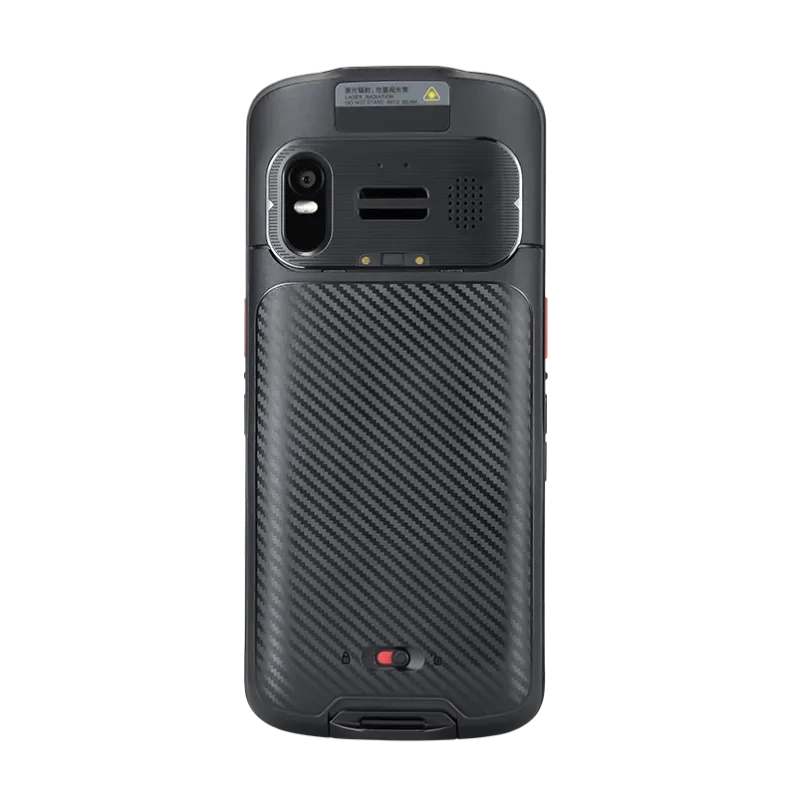

6.5" Android Rugged PDA Handheld Terminal with Honeywell N5703 2D Barcode Scanner
6.5'' Handheld PDA Data Collector with Honeywell N5703 2D Barcode Scanner. Rugged Android Mobile Terminal featuring 4G, WiFi, NFC & IP67 rating for warehouse, logistics, and retail management.
Specifications
- Item No.
- TC65
- OS
- Android 13 / 14
- Display
- 6.5-inch HD Touch Screen
- RFID Reader
- UHF RFID (860–960MHz)
- Processor
- MTK68781
- Memory
- 3GB/4GB RAM + 32GB/64GB ROM (Supports MicroSD up to 128GB)
- Battery
- 3.7V / 5000mAh Rechargeable Li-ion, Type-C Fast Charge
- Protection Rating
- IP67 Sealing (1.5m Drop Resistance)
- Cellular Network
- 4G LTE / 3G / 2G Full Netcom
- Scan Engine
- Honeywell N5703 2D Imager (Global Shutter)
- Symbologies
- 1D: Code 39, Code 128, UPC/EAN, GS1, etc. 2D: QR Code, Data Matrix, PDF417, Aztec, etc.
- Wi-Fi / Bluetooth
- Wi-Fi / Bluetooth
- NFC
- 13.56 MHz (ISO14443A/B, ISO15693 protocols)
- Camera
- Front & Rear HD Cameras with Auto-Focus and Flash
- Operating Temp.
- -20°C to 50°C
The 6.5-Inch Rugged Handheld Mobile Terminal is a high-performance industrial data collector engineered for demanding enterprise applications. Powered by an advanced Octa-Core processor and integrated with the industry-leading Honeywell N5703 2D Scan Engine, this PDA delivers ultra-fast, highly accurate 1D/2D barcode scanning—even on damaged, smudged, or digital screen barcodes. Designed with an IP67 rugged rating, 4G LTE connectivity, dual-band Wi-Fi, and NFC capabilities, it provides seamless data transmission and durability for warehousing, logistics, field service, and retail management.
Key Features
- Honeywell N5703 2D Scan Engine: Equips global shutter technology with high motion tolerance (up to 6 m/s) and long-range scanning capabilities for lightning-fast capture of 1D, 2D, QR codes, and OCR fonts.
- Large 6.5-Inch HD Display: High-resolution capacitive touchscreen provides clear visibility under direct sunlight and supports operation with wet hands or gloves.
- Robust Performance & Large Memory: High-speed Octa-Core processor paired with generous RAM/ROM storage ensures smooth multitasking and application execution on the modern Android platform.
- IP67 Industrial Protection: Dustproof, waterproof, and built to withstand 1.5-meter concrete drops, ensuring reliable operation in extreme environments (-20°C to 50°C).
- Comprehensive Wireless Connectivity: Supports 4G Full Netcom, Dual-Band Wi-Fi (2.4GHz/5GHz), Bluetooth 5.0, high-precision GPS/AGPS/Beidou, and NFC (ISO14443A/B, ISO15693).
- Long-Lasting Battery Life: Equipped with a 5000mAh high-capacity battery supporting Type-C fast charging, providing all-day continuous workflow without downtime.
Applications
- Warehouse & Logistics: Inventory tracking, parcel sorting, asset management, inbound/outbound logging.
- Retail & Supermarkets: Price checking, stock auditing, mobile point-of-sale (mPOS).
- Manufacturing & Field Service: Work-in-progress monitoring, field data entry, ticketing.
- Healthcare & Public Transport: Patient ID wristband verification, ticket validation.
